Dome X 3 in 1 LED Indicators Chrome - 2 pairs
Dome X 3 in 1 LED Indicators Chrome - 2 pairs
Regular price
$145.00
Regular price
$145.00
Sale price
$145.00
Unit price
per
Couldn't load pickup availability

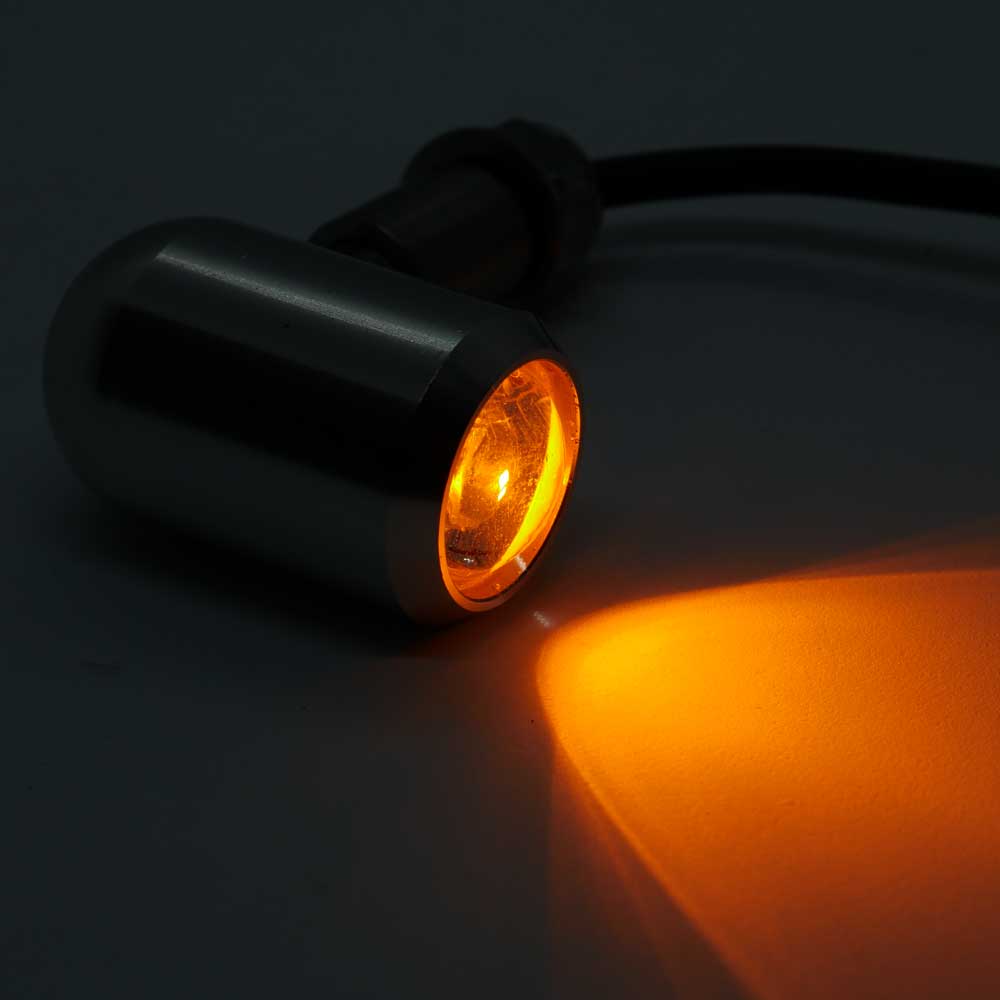

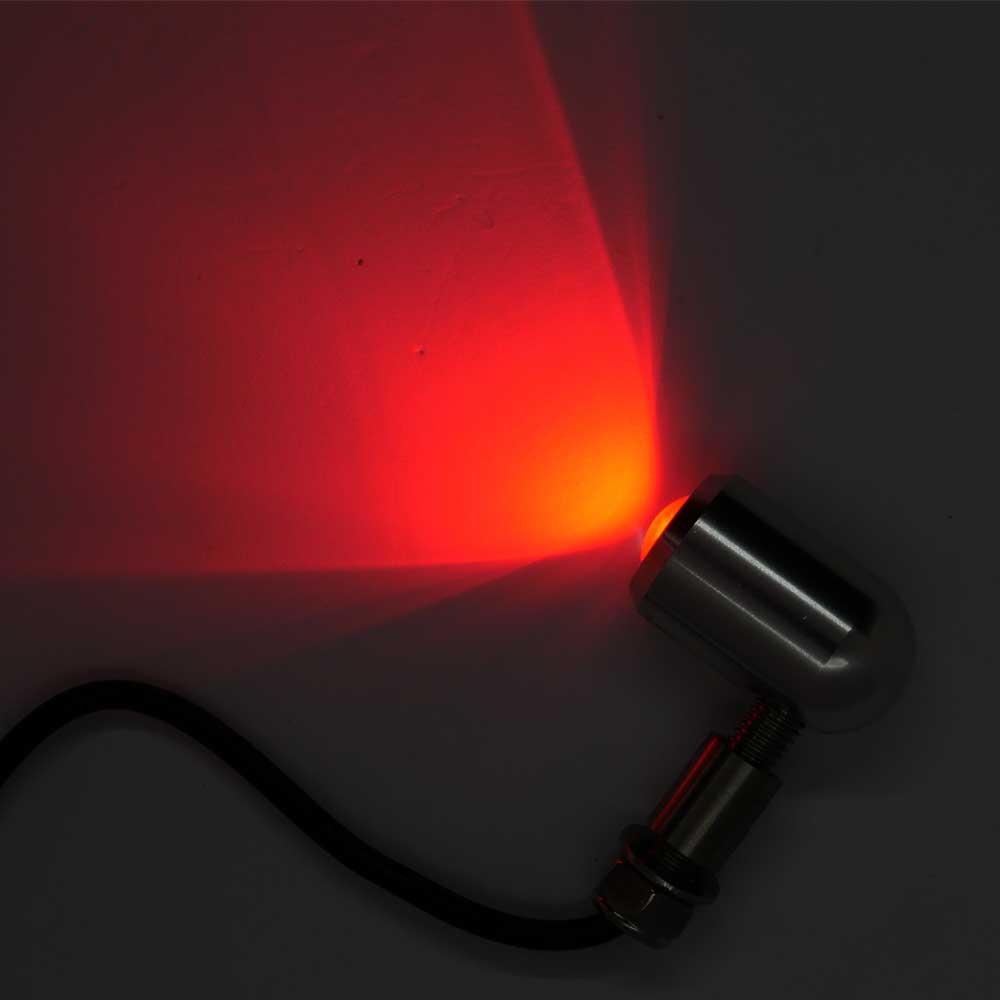

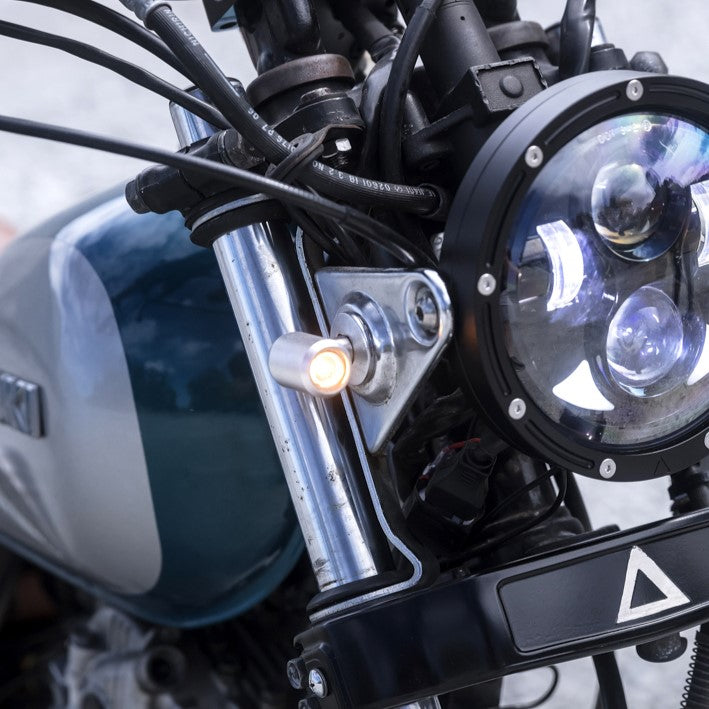

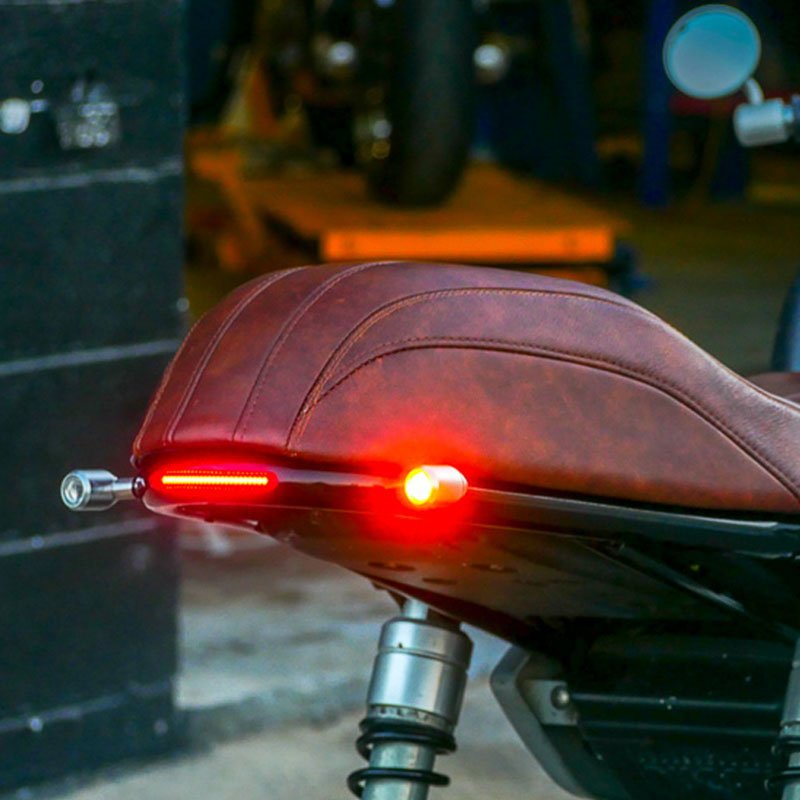

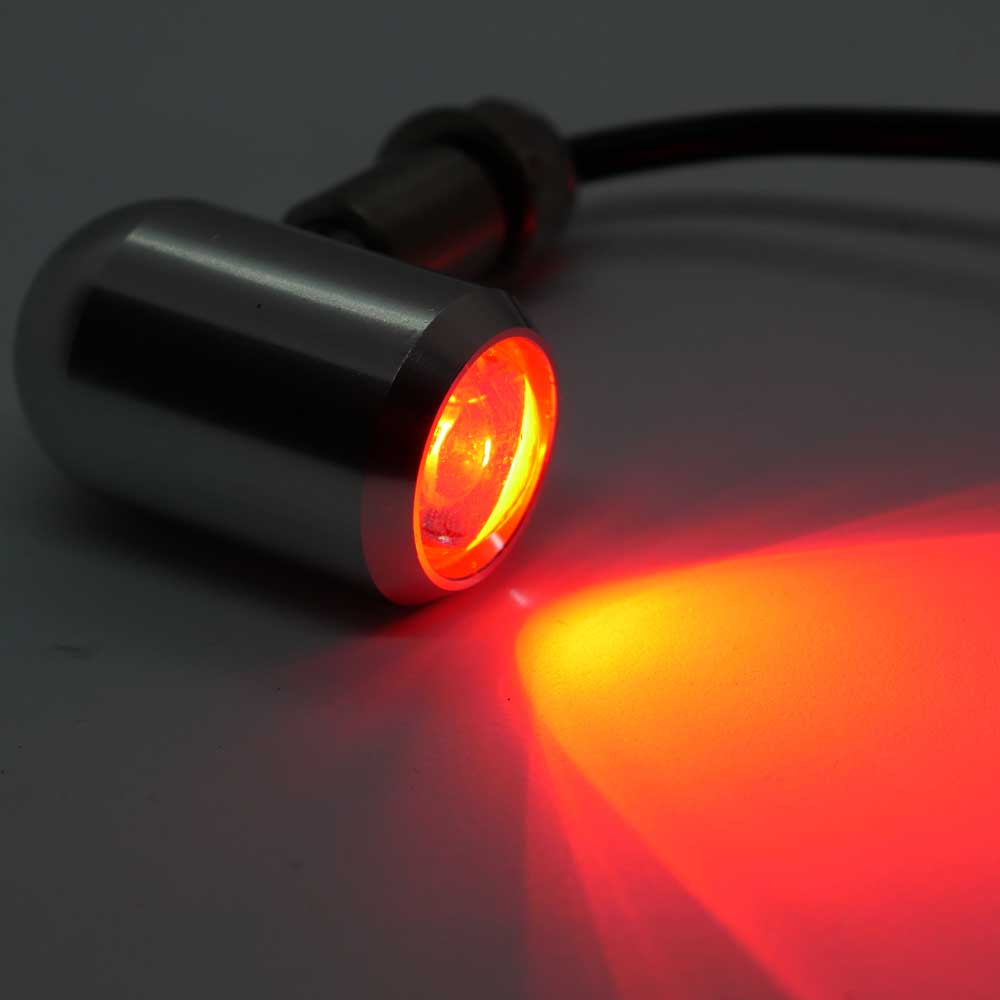

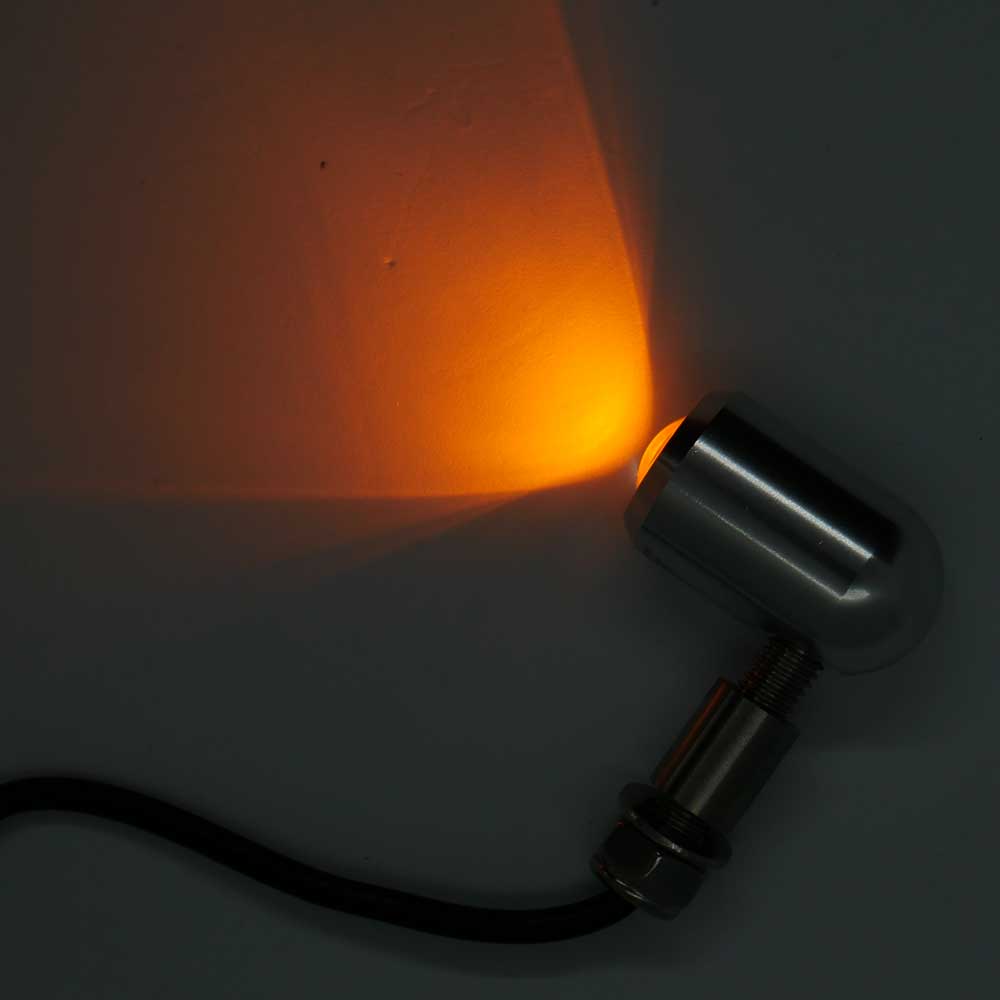

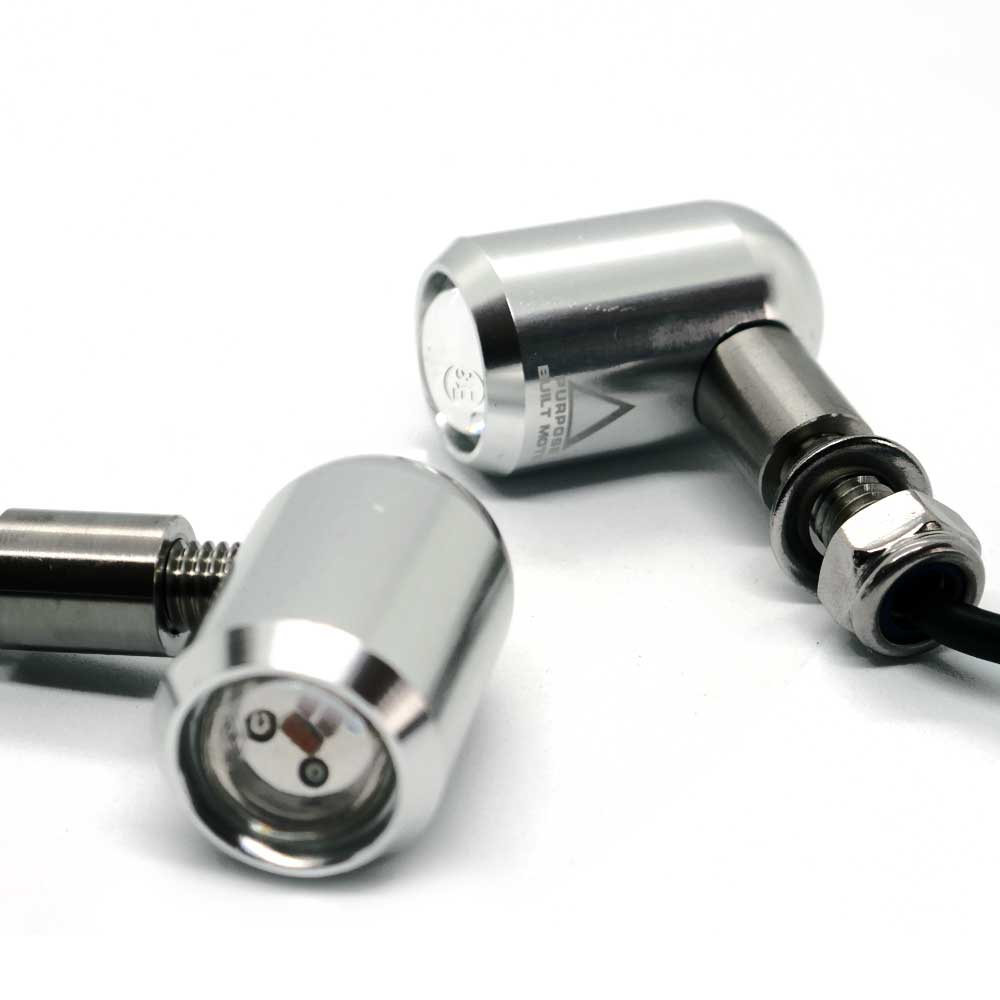

Our highly rated 3-in-1 Motorcycle LED Dome Chrome Indicators operate as Turn Signals, Brake Light and Tail Light, all in one. Minimalist design and super bright at home on any motorcycle modern or classic. These LED indicators are designed to be barely noticeable until you switch them on.
Easy to install, totally adjustable and backed by Purpose Built Moto's 12 month warranty. You've just found the perfect 3 in 1 motorcycle LED indicators.
Dimensions:
Diameter: 23mm
Body length : 40mm
Total Thread Length: 35mm
Spacer Length: 15mm

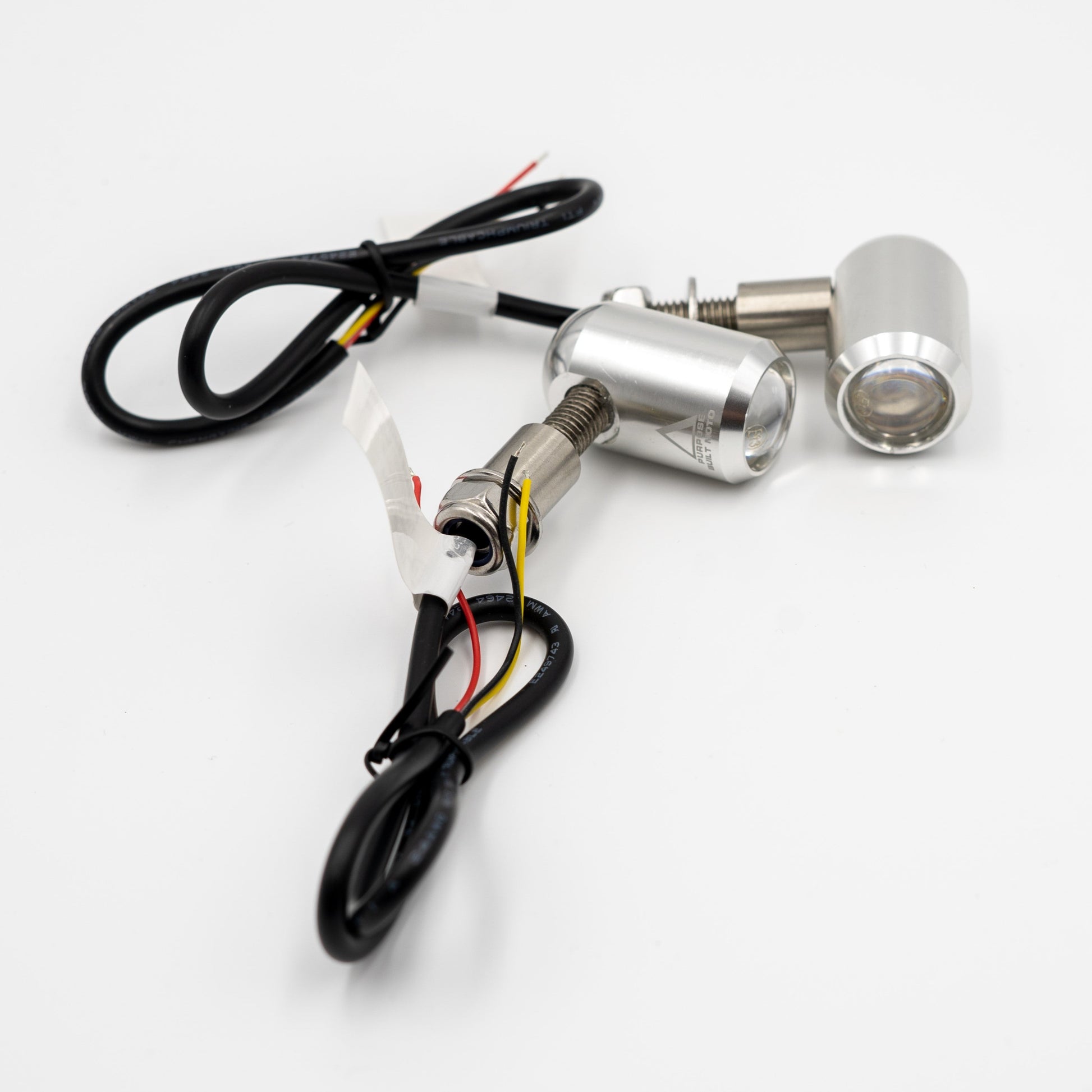

Wiring:
Red to brake or splitter
Yellow to turn signal
Black to ground
Installation:
M8 x 1.25 threaded mounting hardware
The mounting options have been improved with a 3 piece design, allowing the user to disassemble and modify the offset spacer easily.
Installation with the optional splitter is required for use with Tail and brake function.
Wiring information can be found in the wiring diagram - product card
Diameter: 23mm
Body length : 40mm
Total Thread Length: 35mm
Spacer Length: 15mm
Wiring:
Red to brake or splitter
Yellow to turn signal
Black to ground
Installation:
M8 x 1.25 threaded mounting hardware
The mounting options have been improved with a 3 piece design, allowing the user to disassemble and modify the offset spacer easily.
Installation with the optional splitter is required for use with Tail and brake function.
Wiring information can be found in the wiring diagram - product card
Certification
ECE approval / ADR compliant: E13 10R - 05 15494
DOT Compliance: Approved
Specification
Voltage: 12Vdc (not suitable for 6V)
Weatherproof: IP65
Lighting output: High intensity LED Red and Amber
Materials: Billet Aluminium housing with stainless steel mounting hardware
Surface treatment: Hard anodised surface
** Warning: Colour anodising may be damaged by certain chemicals or abrasion and can be prone to sun-fade if exposed to these conditions.
ECE approval / ADR compliant: E13 10R - 05 15494
DOT Compliance: Approved
Specification
Voltage: 12Vdc (not suitable for 6V)
Weatherproof: IP65
Lighting output: High intensity LED Red and Amber
Materials: Billet Aluminium housing with stainless steel mounting hardware
Surface treatment: Hard anodised surface
** Warning: Colour anodising may be damaged by certain chemicals or abrasion and can be prone to sun-fade if exposed to these conditions.
All products are backed by our 12 month manufacturers warranty and are sold with a 30 day return policy
