Black Box + 1 Switch Kit

$295.00

~~$280.00~~ $295.00

Sale Sold out

Shipping calculated at checkout.

The Purpose Built Moto Black Box + 1 Switch Kit will give you everything you need to get rid of your bulky handlebar switches and control your motorcycle lighting with the use of our perfectly finished push button switches.

Controlling your motorcycles lighting and getting rid of the pesky fusebox has never been easier.

Pair this with the Purpose Built Moto Black Box Accessories Kit to completely rewire your next motorcycle build!

Bundle and save, with this kit you save up to $45!

Select your switches below.

INSTALLATION GUIDE

Product variants

Quantity

Size and Fitment

Black Box Details
Dimensions:
Length: 40mm
Width: 35mm
Depth: 26mm

Universal fitment on any 6v or 12v system.
Small enough to be hidden anywhere on your bike.

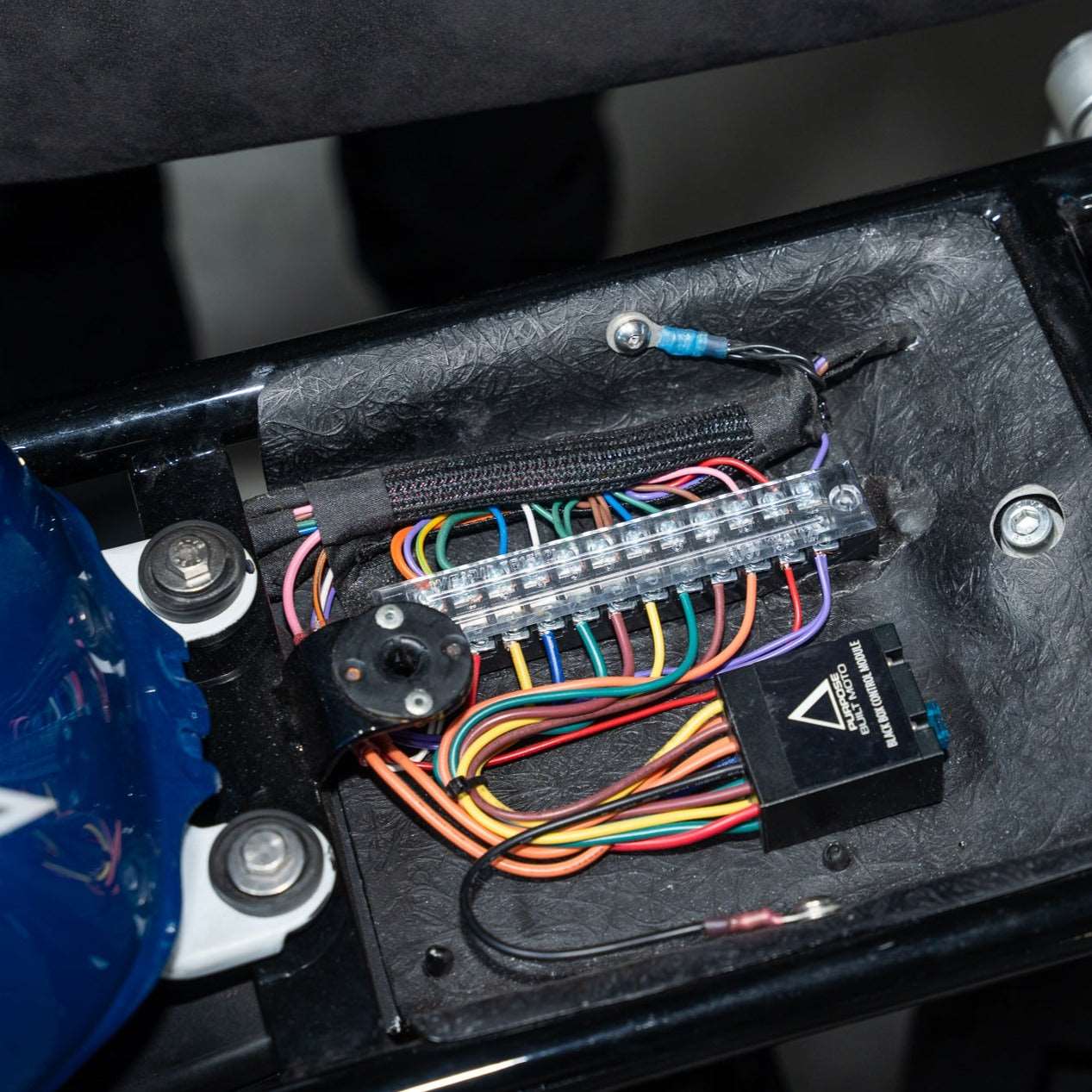

Designed to be quickly installed and for maximum functionality only delivering the features you need. A stand alone unit easily added to your existing wiring or with a complete re-wire.

Switch Details
Available in Black Anodised or machine polished finish.
7/8" (22.225mm) or 1" (24.5mm)
2 or 3 Button configuration

Technical Info

Included in this kit:

1 x Push Button Switch from our range
1 x Black Box Digital Control Unit

Black Box Functions:
All control functions are compatible with LED, and incandescent lighting without the use of resistors.
Functions are controlled by momentary switch inputs

Headlight: High and Low beam with a single momentary switch
Turn signals: Auto time out 5 sec and 25 sec
Integrated kill switch circuit
Hazard light function

Specs:
Operation: 6V and 12V
Headlight: 55W Low Beam - 80W High Beam max output
Turn signals: 40W max output per side
Kill switch: 15 Amp Unfused
Integrated Blade fuse: 15 Amp

Add an ACCESSORIES KIT to your order which includes:
2 x Micro Blade Fuse Holders
1 x Terminal Strip

For the installation guide click here

Returns + Warranty

All products are backed by our 12 month manufacturers warranty and are sold with a 30 day return policy

For more information refer: Purpose Built Moto's warranties and returns policy

View full details

DIY Motorcycle Wiring Solution

As Bike Builders, we strive for simple, elegant solutions to complex problems, as product designers we do the same. This has lead to the development of the Black Box as an M-Unit alternative control relay, and some clen switches to control it all. We've designed the Black Box to be an easily integrated upgrade, allowing for quick and straight forward installation without the need for complex wiring or modifications. This user-friendly approach ensures that you can easily upgrade your bikes lighting system with ease, saving time and effort.

Switch up your ride

Clean and Elegant finishes are what we all chase when customising our motorcycles. Bulky, plastic switches are not the way to get there. Using our perfectly finished switches is the best way to trick up the handlebar section of your motorcycle. Make that view of the cockpit a welcome one, every ride.

Simple installation for Seamless Lighting Control

The Black Box control module gives you simple to install user-friendly solution for managing your motorcycle's electrical system. With its minimalist design and intuitive interface, you can simply customise your switching configurations. Switch placement and finish are all at your own discretion, you choose how you want to ride.
